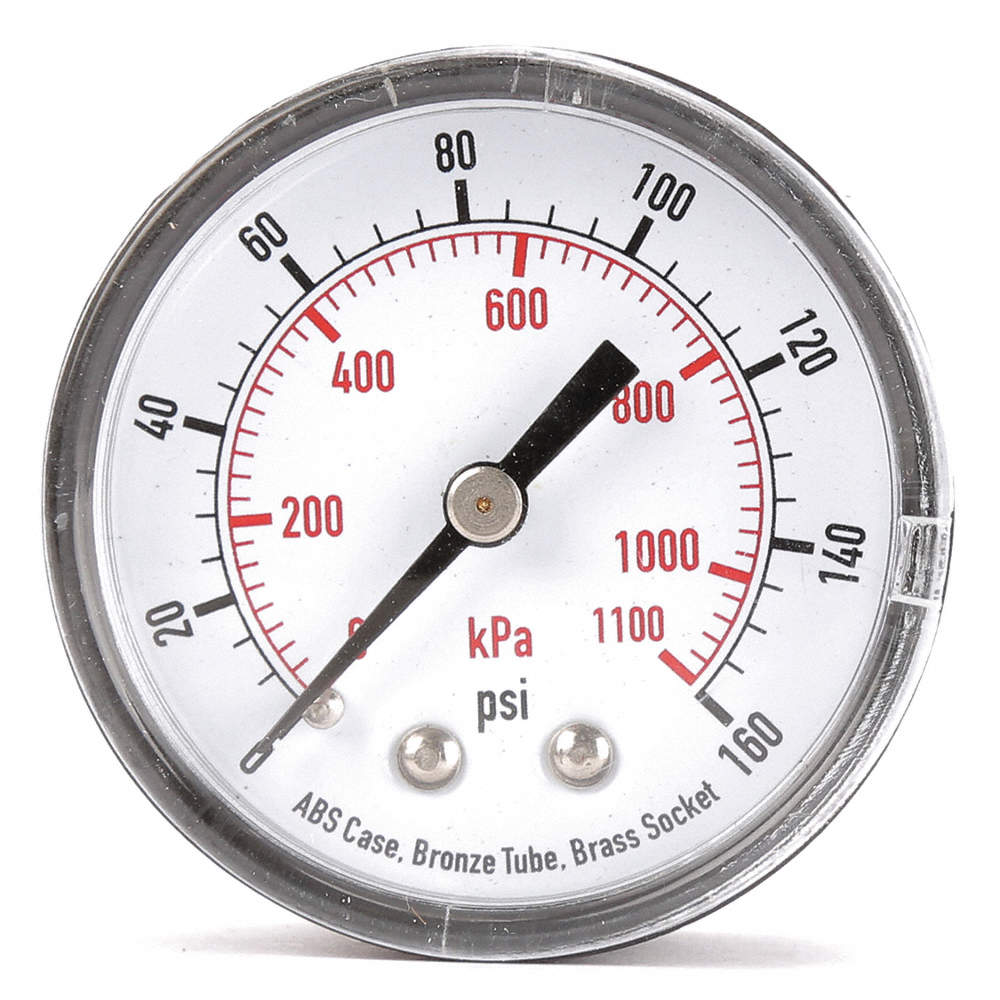

Pressure Gauge, 2 in, 160 PSI | Part No. 4FMC7B | GRAINGER

For use with water, oil, air, and chemicals compatible with beryllium copper, phosphor bronze and brass.

Item: Commercial Pressure Gauge	Nominal Dial Size: 2 in
Accuracy: +/-3-2-3%	Gauge Case Material: ABS Plastic
Process Connection Type: NPT	Process Connection Gender: Male
Lens Material: Acrylic	Process Connection Size: 1/4 in
Field Fillable: No	Process Connection Location: Center Back
Case Colour: Black	IP/NEMA Rating: Not Rated
Primary Pressure Range: 0 to 160	Dry Dampening Feature: None
Vibration Resistance: None	Dial Colour: White
Pressure Gauge Type: General Purpose Dial Pressure Gauge	Liquid-Filled Case: No
Gauge Case Liquid: None	Panel-Mountable: No
Socket Material: Brass	Sensor Material: Bronze
Application: Test and Measurement	Primary Scale Units: psi
Accuracy Scale: Mid-Scale	Ambient Operating Temperature Range: -40 Degrees to 150 Degrees F
Bezel Material: Crimped Stainless Steel	Blowout Safety Back: No
Cleaned for Oxygen Service: No	Freeze Resistant Movement: No
Hazardous Location Rating: Not Rated	Includes Calibration Certificate: No
Includes Mounting Hardware: No	Includes Vent Plug: No
Mounting Type: Stem-Mount	Non-Sparking: No
Pressure Range Type: Pressure	Primary Scale Minor Graduations: 1, 2
Removable Bezel: No	Scale Type: Dual
Secondary Pressure Range: 0 to 1,100	Secondary Scale Units: kPa
