Description

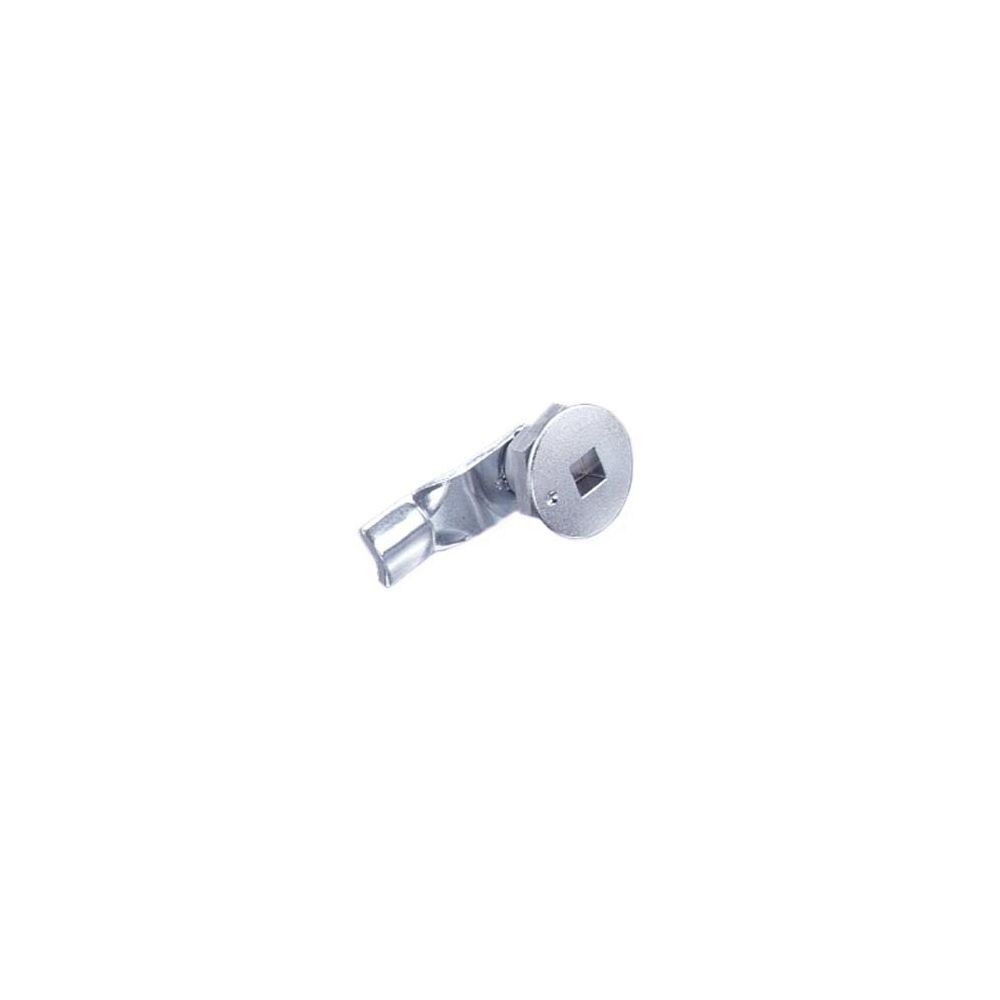

Quarter-Turn Cam Latch, 8 mm Square Recess, 36mm (1.42 in) Grip, Not Sealed, Zinc Alloy, Chrome Plated, Bright.
These latches deliver affordable simplicity – including quick access with just a quarter turn, the versatility of multiple body materials, plus the flexibility of modular design for numerous actuation and dimensional options. Ramped cams provide a snug fit to minimize vibration and rattles.
Specifications
|
Material
|
Zinc Alloy
|
|
Finish
|
Chrome Plated
|
|
Color/Appearance
|
Bright
|
|
Access Restriction
|
Tool
|
|
Grid Type
|
Fixed
|
|
Head Style
|
8 mm Square Recess
|
|
Series
|
20.1 mm Size
|
|
Min. Outer Panel Thickness (mm)
|
0.00
|
|
Max. Outer Panel Thickness (mm)
|
6.00
|
|
Grip- Minimum (mm)
|
36.00
|
|
Grip - Maximum (mm)
|
38.00
|
|
Profile
|
Low Profile
|
|
Compliance Specification
|
Fire - EN45545
|
|
Class
|
E5 - Cam Latches
|
