ALEMITE
Hydraulic 90° 1/4"-28 Tapered Thread Grease Fitting | Part No. 1911-B1 | ALEMITE
Quantity:
Pickup available at Ashcon International Inc.
Usually ready in 24 hours
Hydraulic 90° 1/4"-28 Tapered Thread Grease Fitting | Part No. 1911-B1 | ALEMITE
Ashcon International Inc.
Pickup available, usually ready in 24 hours
3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada

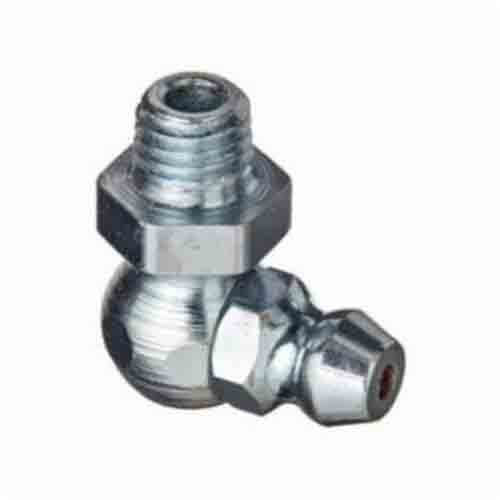

Alemite® Grease Fitting Zerk, 90° Thread Forming, 1/4-28 SAE-LT Male Taper, 3/4 in Overall Length, 13/64 in Shank Length, 3/8 in Hex, Trivalent Zinc Plated, Steel
FEATURES
- Exceeds 72 hr salt spray test
- Dirt-excluding check ball
- 10000 psi maximum
- Surface ball check
- It is recommended that SAE-LT taper threads be assembled into 1/4-28 UNF, class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151 in, to ensure 75% minimum thread height
- Used where high volume of lubrication is required
- They are used for rugged automotive, agricultural and industrial machinery applications
SPECIFICATIONS
| Manufacturer Part Number | 1911-B1 |
|---|---|
| Manufacturer | Alemite Corp |
| Brand Name | ALEMITE® |
| UPC | 098468100523 |
| Length (in) | 0.75 |
| Thread Type | SAE-LT Male Taper |
| Thread Size | 1/4 in - 28 |
| Standard Approvals |
RoHS Compliant |
| Type | 90 deg Thread Forming |
| Hex Size | 3/8 in |
| Finish | Trivalent Zinc Plated |
| Material | Steel |
| Shank Length | 13/64 in |
| Package Quantity | 1/Each |
