High Temp clamp (2"" ID, Thick .375"") With Silicone Cushion, mounting hole 3/8" | Part No. 5420SS32HT113X | STAR TECHNOLOGIES

Star Technologies

High Temp clamp (2"" ID, Thick .375"") With Silicone Cushion, mounting hole 3/8" | Part No. 5420SS32HT113X | STAR TECHNOLOGIES

$15.00
Quantity:
Pickup available at Ashcon International Inc. Usually ready in 24 hours

High Temp clamp (2"" ID, Thick .375"") With Silicone Cushion, mounting hole 3/8" | Part No. 5420SS32HT113X | STAR TECHNOLOGIES

Ashcon International Inc.

Pickup available, usually ready in 24 hours

3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada

+19055692300

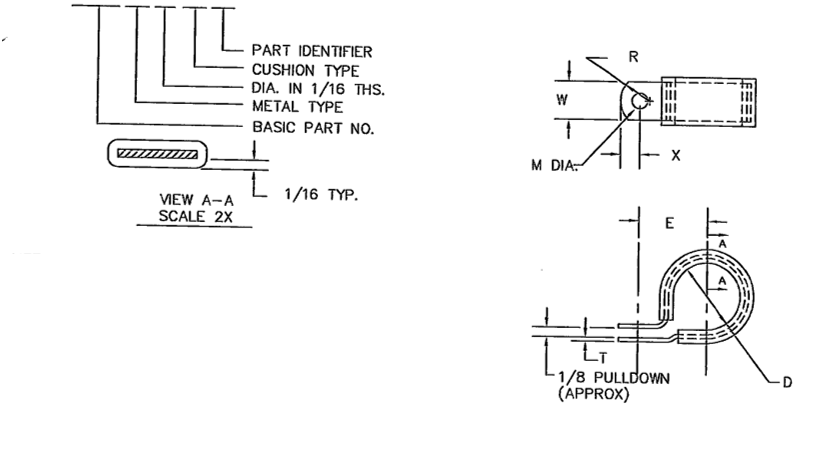

PART NO.  D DIA. E DIM. ±.03 M. DIA T ± .005 W R

X

5420SS32HT113X

 2.000 1.595 .406 .050 3/4 1/2

.375



METAL:

A= 2024 ALUMINUM PER QQ-A-250/5F
HEAT TREAT TO T42 CONDITION
SS=STAINLESS STEEL 300 SERIES COMM. GRADE
S= 1010 STEEL, PER QQ-S-698
ZINC PLATE PER QQ-Z-325 TYP. 1 CLASS

CUSHION:

N= NEOPRENE PER AMS 3209
HT= SILICONE PER AMS3303 MODIFIED
TO 100 LBS. PER INCH TEAR COLOR RED
E= EPDM
