High Temp clamp (1 1/2" ID, Thick .375") With Silicone Cushion, mounting hole 3/8" | Part No. 5420SS24HT126X | Star Technologies
High Temp clamp (1 1/2" ID, Thick .375") With Silicone Cushion, mounting hole 3/8" | Part No. 5420SS24HT126X | Star Technologies

Star Technologies

High Temp clamp (1 1/2" ID, Thick .375") With Silicone Cushion, mounting hole 3/8" | Part No. 5420SS24HT126X | Star Technologies

$1.95
Quantity:
Pickup available at Ashcon International Inc. Usually ready in 24 hours

High Temp clamp (1 1/2" ID, Thick .375") With Silicone Cushion, mounting hole 3/8" | Part No. 5420SS24HT126X | Star Technologies

Ashcon International Inc.

Pickup available, usually ready in 24 hours

3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada

+19055692300

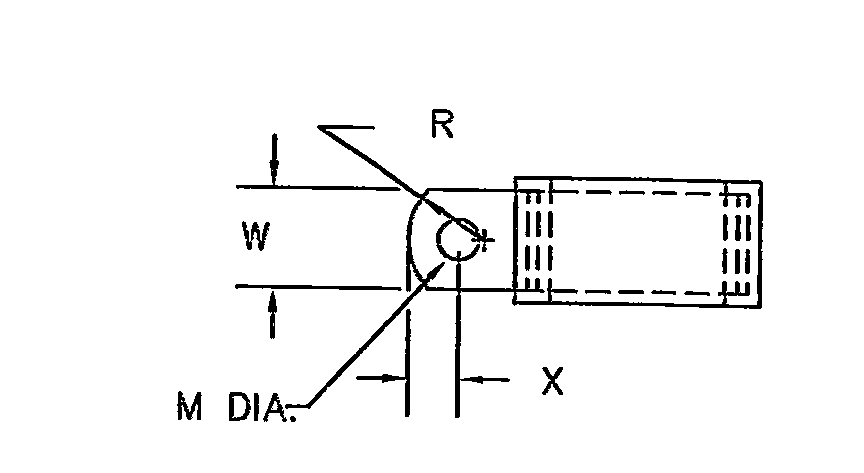

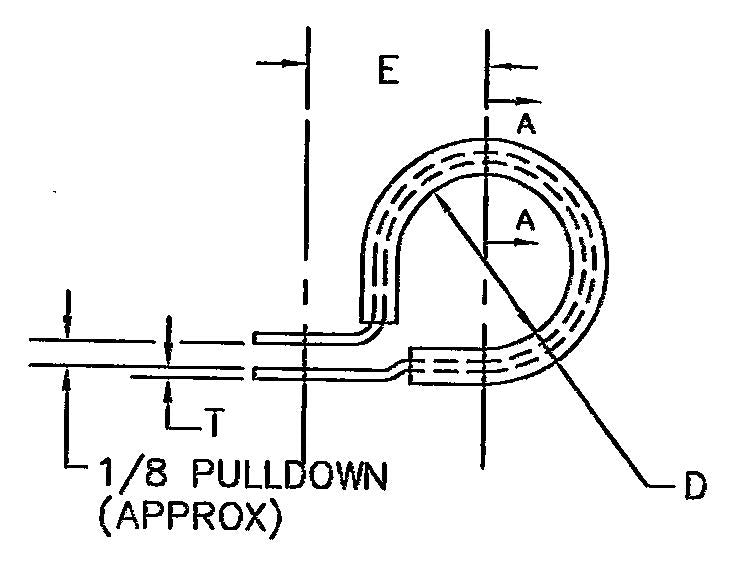

PART NO. D DIA. E DIM. ±.03 M. DIA T ±.005 W R X
5420SS24HT126X 1.5 1.234 .406 .040 3/4 1/2 .375



 METAL:

                A= 2024 ALUMINIUM PER QQ-A-250/5F

                      HEAT TREAT TO T42 CONDITION

                SS= STAINLESS STEEL 300 SERIES COMM. GRADE

                  S= 1010 STEEL, PER QQ-S-698

                      ZINC PLATE PER QQ-Z-325 TYP. 1 CLASS 2



CUSHION:

                N= NEOPRENE PER AMS 3209

                HT= SILICONE PER AMS3303 MODIFIED

                        TO 100 LBS. PER INCH TEAR COLOR RED

                E= EPDM
