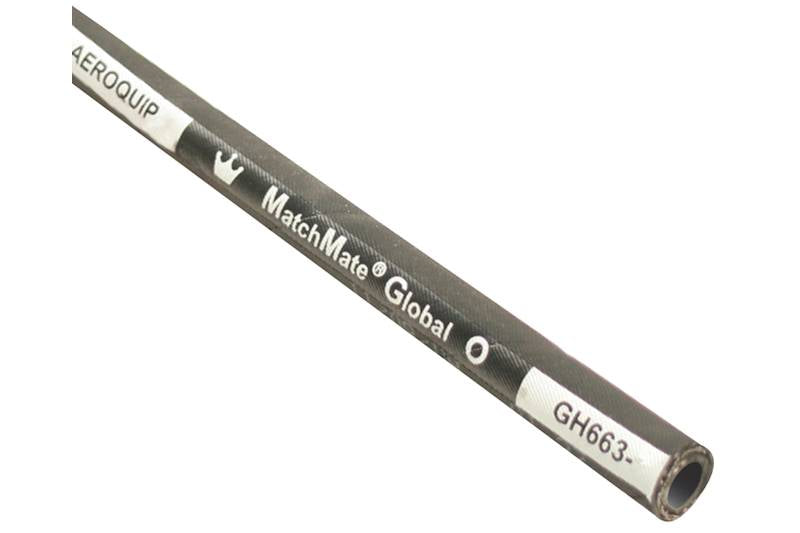

1/2 SAE Bend Radius Hydraulic Hose | Part No. GH663-6 | AEROQUIP
Quantity:
Pickup available at Ashcon International Inc.
Usually ready in 24 hours
1/2 SAE Bend Radius Hydraulic Hose | Part No. GH663-6 | AEROQUIP
Ashcon International Inc.
Pickup available, usually ready in 24 hours
3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada
| *Long Description | Eaton Aeroquip GH663-6 Hose, R1 MM+ Working Pressure 2250 PSI Inside diameter 0.38 IN Outside diameter 0.69 IN Product length 12 IN |
| Application | Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water. |
| Brand | Eaton |
| Burst Pressure | 13600 Pound Per Square Inch / 937.69 bar |
| Certification(s) | EN853 1SN|ABS|EN853 1ST|EN857 1SC|SAE 100R17|SAE 100R1AT |
| Collision Status | None |
| Color | Black |
| Compliance(s) | DNV|MSHA Approved|USCG |
| Conductivity | Conductive |
| Construction | 1 Ply Braid |
| Cover Material | Synthetic Rubber |
| Dash Size | -6 |
| Description | GH663-6~Hose |
| Feature | Triple crown advantage|Available in multiple sizes.|MATCHMATE Global 1/2 SAE Bend Radius|Meets or exceeds: SAE 100R1AT Type S, EN853 1SN, ISO 1436-1 Type 1SN|Sold by the foot. |
| Impulse Cycle Life | 400000 Cycles |
| Inside Diameter | .38 Inch / 9.65 mm |
| Marketing Description | Eaton Aeroquip 0.38 IN Hose, R1 MM+ |
| Maximum Working Temperature | 126 Celsius |
| Minimum Bend Radius | 2.48 Inch / 62.99 mm |
| Minimum Working Temperature | -46 Celsius |
| Outside Diameter | .65 Inch / 16.51 mm |
| Package Form | Bulk |
| Product Height | .69 Inch / 17.53 mm |
| Product Type | Hose |
| Qualified Hose Fittings | TTC |
| Reinforcement Material | Wire |
| Sub-brand | Aeroquip |
| Taxonomy | Hoses and Flexible Tubes |
| Trade Name | GH663 Series |
| Tube Material | Synthetic Rubber |
| Tube Wall Thickness | .27 Inch / 6.86 mm |
| Working Pressure | 3400 Pound Per Square Inch / 234.42 bar |
