Economy Gauge 0 to 160 psi/kPa, 2" dial, ¼" NPT back | Part No. PEM1409 | WINTERS
Quantity:
Pickup available at Ashcon International Inc.
Usually ready in 24 hours
Economy Gauge 0 to 160 psi/kPa, 2" dial, ¼" NPT back | Part No. PEM1409 | WINTERS
Ashcon International Inc.
Pickup available, usually ready in 24 hours
3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada

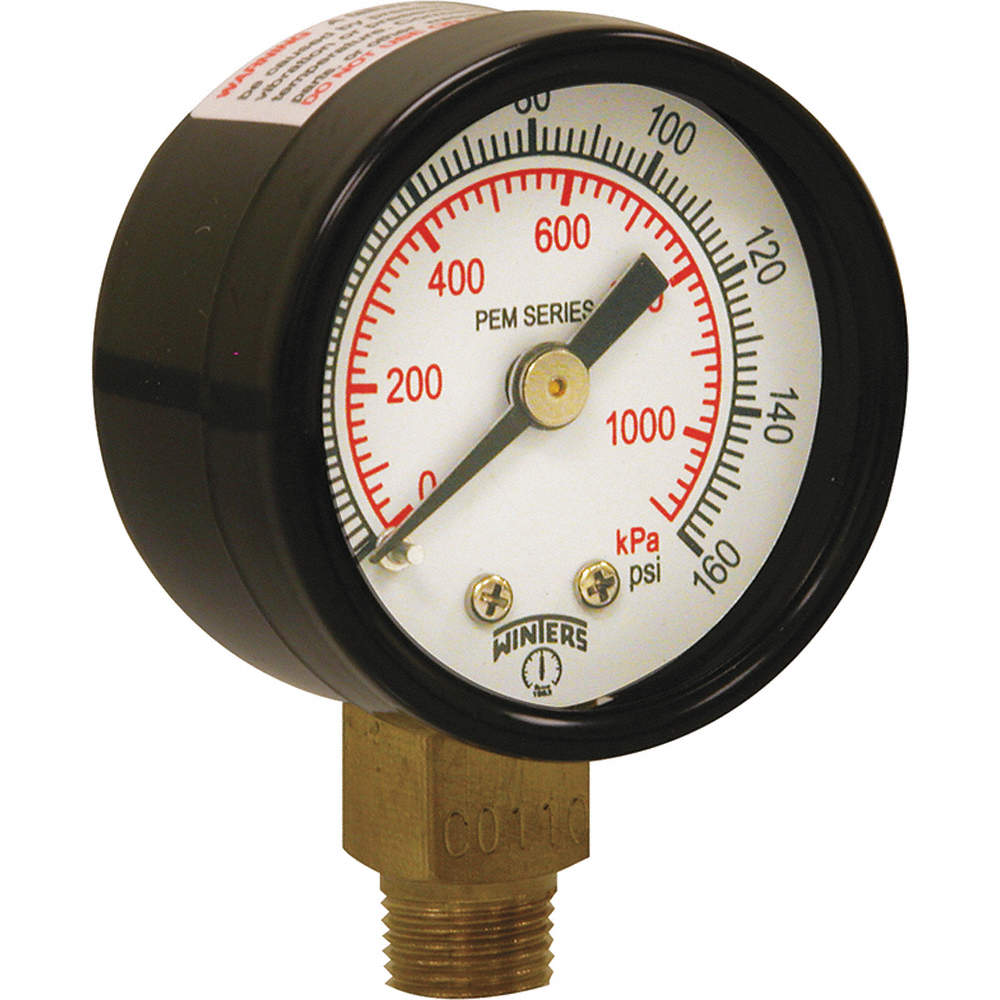

An economical, all-purpose pressure gauge with brass wetted parts. Features a pressure range of 0 to 160 psi/kPa, 2" dial size, and ¼" NPT back connection.
Features
- Friction bezel rings
- Black steel case
- Brass wetted parts
- ±3-2-3% accuracy
- ASME B40.100 compliant
- CRN registered
Applications
- Plumbing
- Heating
- Air conditioning
- Pneumatic
- Hydraulic
- Water tanks
- Air compressors
- OEM
- Water systems
- Non-clogging and non-corroding media
Specifications
| Pressure Range | 0 to 160 psi/kPa |
| Dial | 2" (50 mm) white aluminum with black and red markings |
| Case | Steel, painted black |
| Lens | Acrylic |
| Ring | Steel, painted black |
| Socket | Brass |
| Connection | ¼" NPT back |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass |
| Pointer | Aluminum, black |
| Welding | Silver alloy |
| Over-Pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40 to 150°F (-40 to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
