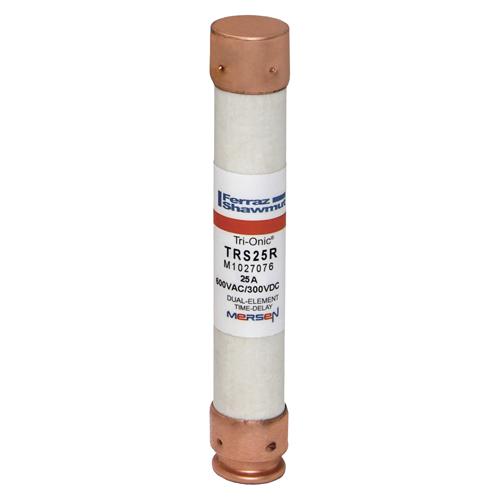

Fuse Tri-Onic® 600V 25A Time-Delay Class RK5 TRS Series | Part No. TRS25R | MERSEN
Quantity:
Pickup available at Ashcon International Inc.
Usually ready in 24 hours
Fuse Tri-Onic® 600V 25A Time-Delay Class RK5 TRS Series | Part No. TRS25R | MERSEN
Ashcon International Inc.
Pickup available, usually ready in 24 hours
3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Specifications
| Item Number | TRS25R |
| Item Description (ERP) | 600V 25A 5x13/16 TD FUSE |
| Short Description | Fuse Tri-Onic® 600V 25A Time-Delay Class RK5 TRS Series |
| EAN/UP Code | 782001748852 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 300 V |
| Frequency | 50/60 Hz |
| Ampere Rating | 25 A |
| Fuse Class | Class RK5 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Ferrule |
| Body/Insulating Material | PolyTube |
