SCHNEIDER ELECTRIC
Telemecanique Fuse Holder | Part No. DF6-N10 | SCHNEIDER ELECTRIC
Quantity:
Pickup available at Ashcon International Inc.
Usually ready in 24 hours

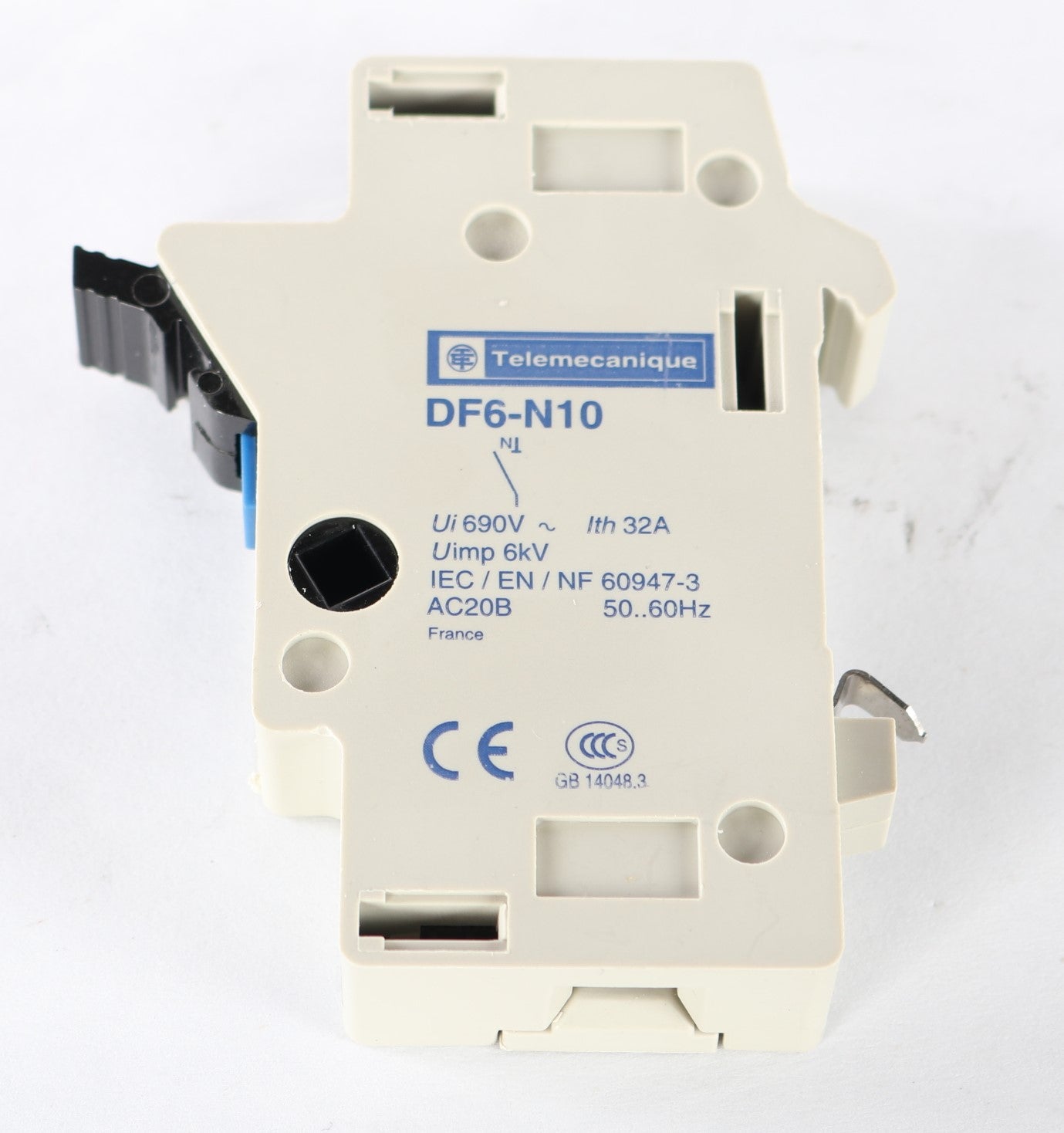

Telemecanique Fuse Holder | Part No. DF6-N10 | SCHNEIDER ELECTRIC
Ashcon International Inc.
Pickup available, usually ready in 24 hours
3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada
| range | TeSys |
|---|---|
| product name | TeSys DF |
| device short name | DF6 N |
| fuse size | 10 x 38 mm 8.5 x 31.5 mm |
| product or component type | Fuse holder |
| poles description | 1N |
| network type | AC DC |
| network frequency | 50/60 Hz |
|---|---|
| control type | Toggle |
| mounting support | Rail |
| [Ui] rated insulation voltage | 480 V |
| connections - terminals | Screw terminals 1 cable(s) 10 mm² flexible without cable end Screw terminals 1 cable(s) 10 mm² solid without cable end Screw terminals 2 cable(s) 6 mm² flexible without cable end Screw terminals 2 cable(s) 6 mm² solid without cable end |
| tightening torque | 1.2 N.m - on screw terminals |
| operating position | +/- 23° |
| height | 81 mm |
| width | 17.5 mm |
| depth | 67.5 mm |
| net weight | 0.08 kg |
| standards | IEC 60947-3 NF C 61-201 |
|---|---|
| protective treatment | TC |
| ambient air temperature for operation | -50…70 °C |
