CORTEM Junction Box| PN:SA302310/P

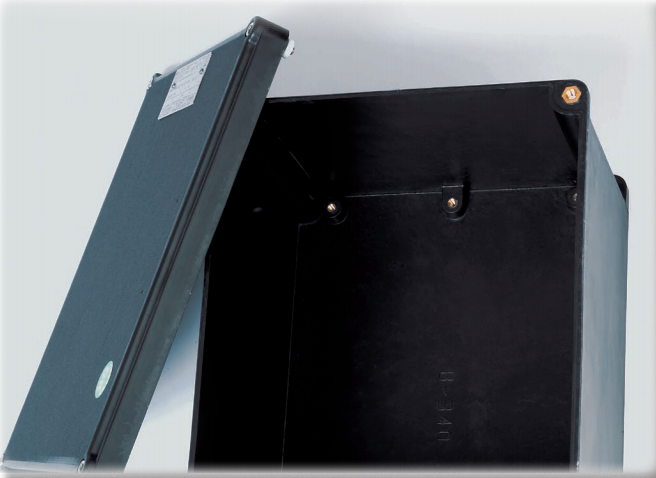

Junction box in GRP black colour

General Mechanical Properties
Body and lid: Made from polyester resin in black with antistatic properties
Impact protection rating: IK10
Gasket: Acid, hydrocarbon and high temperature-resistant silicone, located between body and lid
Mounting: Polyester feet for M6 screws
Certification label: Aluminium plate riveted into lid
Bolts and screws: Stainless steel captive variety

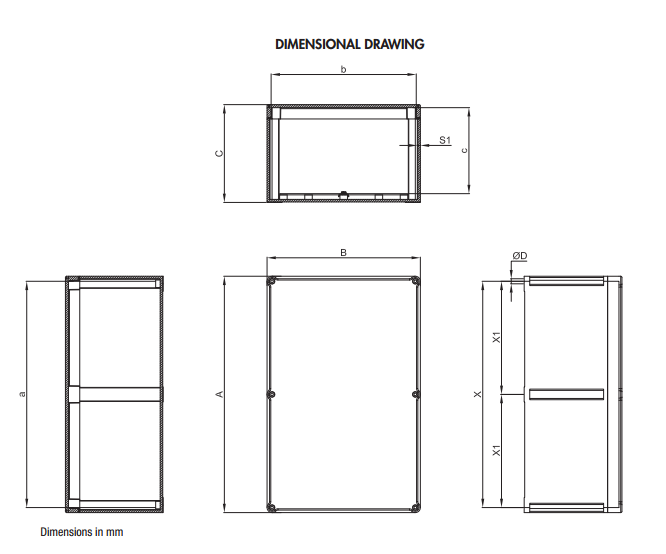

Outside Dimension:
A: 305
B: 230
C: 110

Inside Dimension:
a: 296
b: 221
c: 90
S1: 4.5

X: 285
Y: 210
X1: -
ØD: 6.5

Weight (Kg): 2.50

Please refer Datasheet for Technical details.

Delivery: 4 weeks
