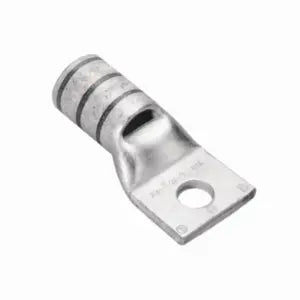

Compression Terminal | Product No. YAB31CG8 | BURNDY
Quantity:
Pickup available at Ashcon International Inc.
Usually ready in 24 hours
Compression Terminal | Product No. YAB31CG8 | BURNDY
Ashcon International Inc.
Pickup available, usually ready in 24 hours
3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada
Product Details
General
| Application | Wire Termination |
| Color Code | Blue |
| Connector Type | LONG BARREL |
| Die Index | 7 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Physical Attribute - Number of Holes | 2 |
| Plated | Y |
| Plating Type | Tin |
| Temperature Rating | 194 |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 621945332492 |
| UPC 12 Digit | 6219453324922 |
Dimensions
| Dimension - B Length inch | 0.94 in |
| Dimension - Bolt Size fraction | 5/16 |
| Dimension - Bolt Size inch | 0.3125 |
| Dimension - D inch | 1.63 in |
| Dimension - Hole Size fraction | 5/16 |
| Dimension - Hole Size inch | 0.38 |
| Dimension - Hole Size mm | 10 mm |
| Dimension - L Length Overall mm | 73 mm |
| Dimension - Length Overall inch | 2.88 in |
| Dimension - N inch | 0.38 in |
| Dimension - Outside Diameter inch | 0.31 in |
| Dimension - Pad Width inch | 0.59 in |
| Dimension - Stud Size fraction | 5/16 |
| Dimension - Z inch | 0.36 in |
| Physical Attribute - Tongue Angle | Straight |
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
| Conductor - Copper Flex G Size | 6 AWG |
| Conductor - Copper Flex H Size | 6 AWG |
| Conductor - Copper Flex I Size | 6 AWG |
| Conductor - Copper Flex K Size | 6 AWG |
| Conductor - Copper Flex M Size | 6 AWG |
| Conductor - Copper Flex M Size Range | 6 AWG |
| Conductor - Copper Str Size | 6 AWG |
| Conductor - Copper Str Size Range | 6 AWG |
| Conductor - Material | COPPER |
| Conductor Size | 6 AWG |
| Conductor Type | CODE |
