LEGRAND

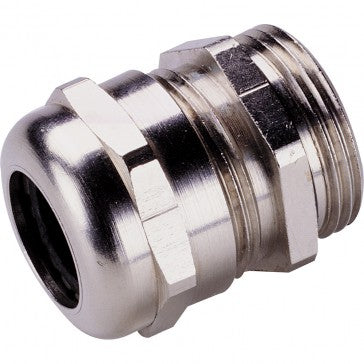

Cable glands metal - IP68 - ISO 20 - clamping capacity 7-13 mm | Part No. 0 955 03 | LEGRAND
Quantity:
Pickup available at Ashcon International Inc.
Usually ready in 24 hours
Cable glands metal - IP68 - ISO 20 - clamping capacity 7-13 mm | Part No. 0 955 03 | LEGRAND
Ashcon International Inc.
Pickup available, usually ready in 24 hours
3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada
Product characteristics
- Mechanically tightened cable glands with neoprene weatherproof seal for IP 68 protection.
- Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength
- Supplied with surface seal mounted
- Conform to EN 50262
- ISO : 20
- Clamping capacity Ø Min. : 7 mm
- Clamping capacity Ø Max. : 13 mm
General characteristics:
Metal cable glands IP 68 - ISO and PG| Quantity | 1 psc |
|
Working temperature
|
85 oC |
| For Ex-zone gas | None |
| With locknut | No |
| Flat cable coupling | No |
| Suitable for cable diameter | 40 mm |
| Glass-fibre reinforced | No |
| Thread type | PG |
| Pitch thread | 1.588 mm |
| Halogen free | Yes |
| Colour | Natural colour |
| Material | Metal |
| Material quality | Stainless steel |
| Weight | 0.03 kg |
| Separable screw gland | No |
| Model | Straight |
| Explosion-tested version | No |
| For Ex-Zone dust | None |
| Wrench width | 58 mm |
| Nominal thread size metric/PG | 42 |
| Thread length | 10 mm |
| Degree of protection (IP) | IP68 |
| Bend radius protection/trumpet flare | No |
| Shock resistant | Yes |
| Surface protection | Untreated |
| Hexagon angular dimension | 63 mm |
