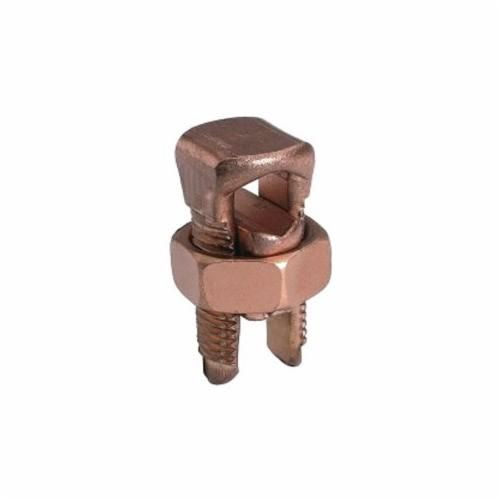

KS Series Split Bolt Connector, 14 to 8 AWG, 10 to 8 AWG Conductor, Copper, Unplated | Part No. KS15 | BURNDY
Ashcon International Inc.
Pickup available, usually ready in 24 hours
3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada
Copper Split Bolt, Cu: 10-8 AWG (Str) (Run & Tap).
General
| Application | For Direct Burial Applications In Earth Or Concrete, Copper |
| Connector Type | Split Bolt |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 80 in-lbs |
| Material | Copper |
| Plated | N |
| Plating Type | Unplated |
| Sub Brand | SERVIT |
| Trade Name | SERVIT® |
| Type | KS, Compact |
Dimensions
| Dimension - B Length fraction | 9/20 in |
| Dimension - B Length inch | .45 in |
| Dimension - Cross Flats inch | 0.50 in |
| Dimension - L Length Overall mm | 22 mm |
| Dimension - Length Overall inch | 0.85 |
| Dimension - Width fraction | 19/50 in |
| Dimension - Width inch | 0.38 in |
| Dimension - Width mm | 10 mm |
| Width | 0.38 in |
Conductor Related
| Conductor - Copper Solid Run | 8 AWG |
| Conductor - Copper Solid Run Range | 10 AWG-8 AWG |
| Conductor - Copper Solid Tap | 8 AWG |
| Conductor - Copper Solid Tap Range | 14 AWG-8 AWG |
| Conductor - Copper Str Run | 10 AWG;9 AWG;8 AWG |
| Conductor - Copper Str Run Range | 10 STR - 8 STR |
| Conductor - Copper Str Tap | 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG |
| Conductor - Copper Str Tap Range | 10 STR - 8 STR |
| Conductor - CopperWeld Solid Tap | #8 |
| Conductor - CopperWeld Solid Tap Range | #8 |
| Conductor - CopperWeld Str Run | #8 |
| Conductor - CopperWeld Str Run Range | #8 |
| Conductor Type |
|
Certifications and Compliance
| Certification - CSA Approved | No |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Certification - cULus | No |
| Industry Standard(s) |
|
| Standards - Industry Standards Met |
|
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
Logistics
| Carton Quantity | 100 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 99000 |
Features: UL467 Listed For Direct Burial Applications In Earth Or Concrete, Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion, Conductor Type: Run And Tap: Solid Copperweld, Commercial Stranded And Solid Copper, Installation Torque: 165 IN-LB, Length: 0.85 IN, Cross Flats: 0.5 IN, Width: 0.38 IN
