BURNDY

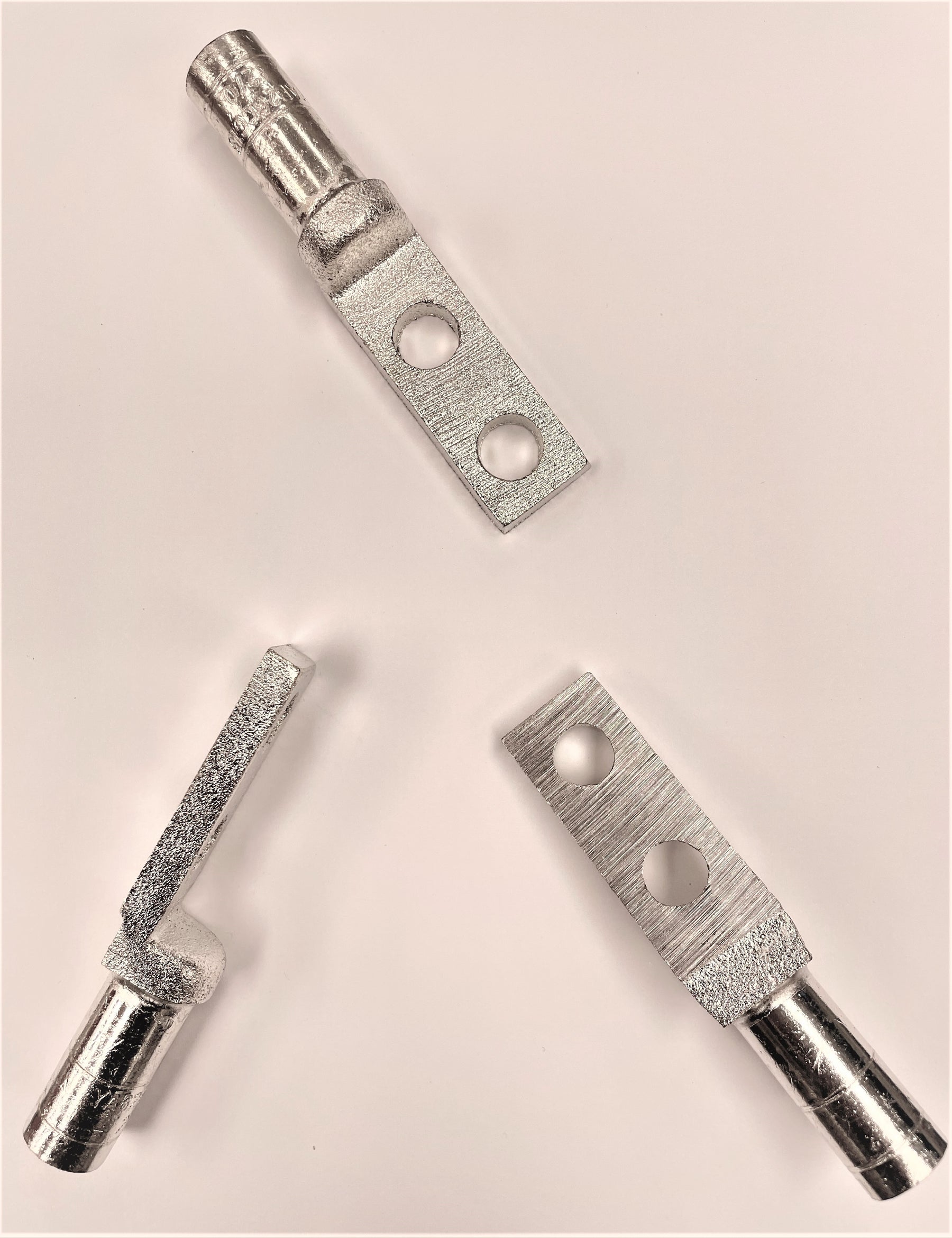

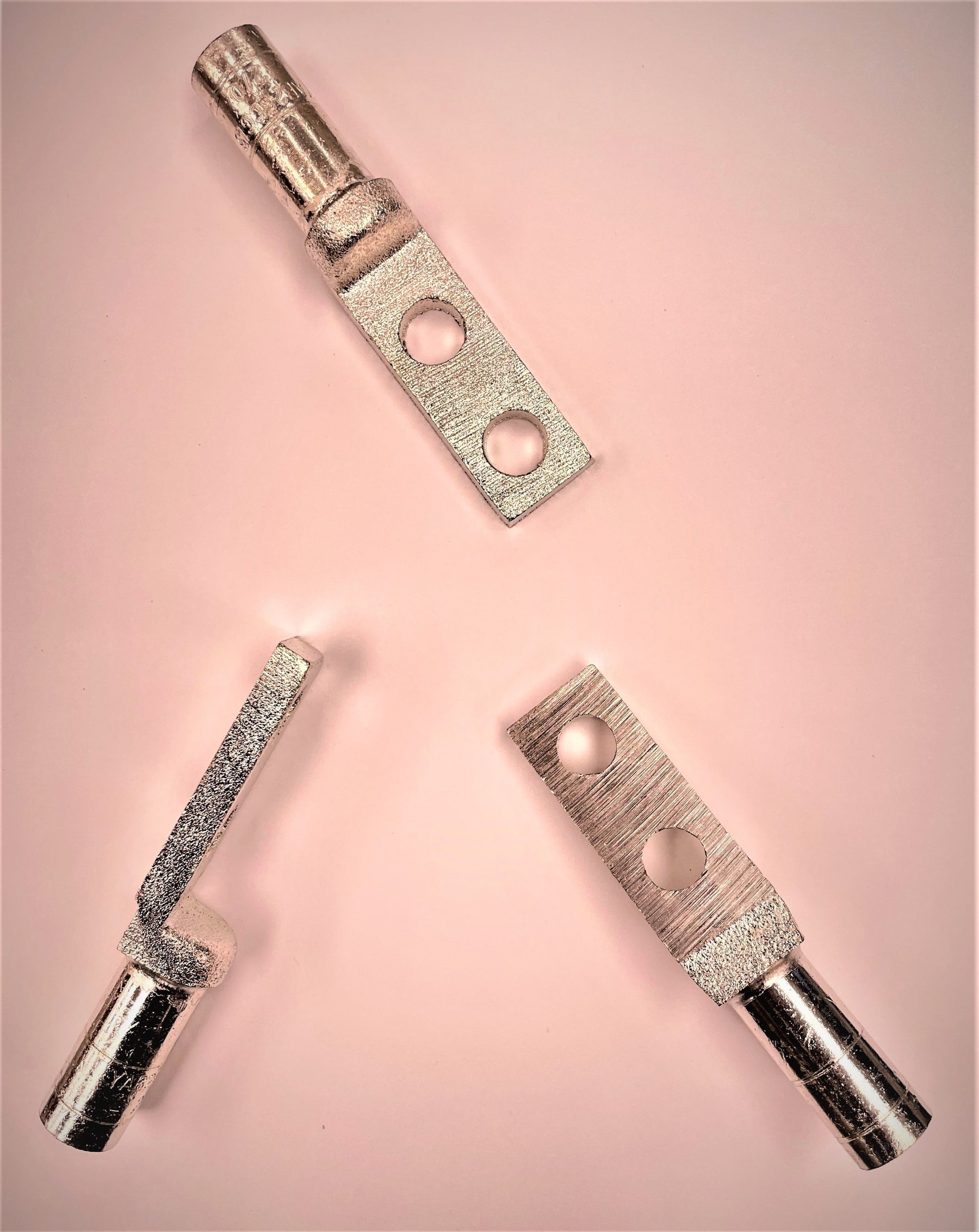

Cable Lug | YAB26CG13 | Burndy
Quantity:
Material:
Cast body: Cast copper alloy.
Barrel: Electrolytic copper tube.
Finish: Tin plated.
Accommodates: 2/0 flex (325/24) 12.2 (.480).
Approximate weight = .182 lb
Cable to be installed with-
Burndy products tool: y35, y39, y750, pat750 with y35p3 adaptor.
Burndy products nest die: uv26l
Burndy products indentor die: y34pa
Cable strip length = 1-1/4".
Dimensions in brackets [ ] are in millimeters rounded off to the nearest millimeter, unless otherwise specified and are for reference only.
