BURNDY

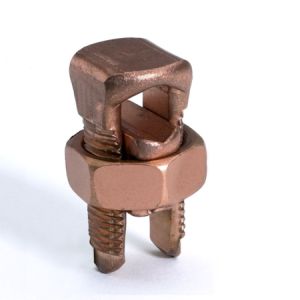

Compact Split Bolt Connector, 1 14 to 6 AWG Conductor, 0.58 in L, Copper | Part No. KS17 | BURNDY
Quantity:
Pickup available at Ashcon International Inc.
Usually ready in 24 hours
Compact Split Bolt Connector, 1 14 to 6 AWG Conductor, 0.58 in L, Copper | Part No. KS17 | BURNDY
Ashcon International Inc.
Pickup available, usually ready in 24 hours
3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada
Copper Split Bolt, Cu: 8 AWG (Str)-6 AWG (Sol) (Run & Tap),Length:1.14.
| Brand Name | Burndy | Sub Brand | Servit® |
| Item Name | Split Bolt | Type | KS, Compact |
| Main Conductor Size | 6-12 AWG | Bolt Size | 7/16 IN |
| Nut Size | 0.63 in | Material | High Conductivity Copper Alloy |
| Tap Conductor Size | 14-6 AWG | Conductor Type | Solid Copperweld, Stranded and Solid Copper, Type D Copperweld, Stranded Copperweld, Type A Copperweld (Run and Tap) |
| Overall Length | 29 mm | Finish | Plain Copper Plated, Untreated |
| Tightening Torque | 165 in-lb | Dimensions | 1.14 in L x 0.45 in W |
| Standards | UL 467, CSA Certified, RoHS Compliant | Application | For Direct Burial Applications in Earth or Concrete, Copper |
| Run AWG Max | 6 Sol. | Run AWG Min | 8 Str. |
| Tap AWG Max | 6 Sol. | Tap AWG Min | 14 Str. |
Features: UL467 Listed For Direct Burial Applications In Earth Or Concrete, Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion, Conductor Type: Run And Tap: Solid Copperweld, Commercial Stranded And Solid Copper, Type D Copperweld, Stranded Copperweld, Type A Copperweld, Installation Torque: 165 IN-LB, Length: 1.14 IN, Cross Flats: 0.63 IN, Width: 0.45 IN
