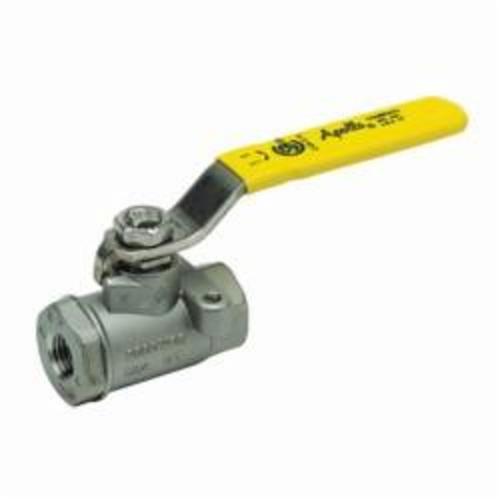

Apollo™ Ball Valve, 2-Piece, Series: 76-100, 1/4 in Nominal, FNPT, 150 psig, Standard Port, 316 Stainless Steel Ball, 2.05 in Inlet to Outlet Length, 1.71 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and RPTFE Seat Trim, Graphite/MPTFE/RPTFE Softgoods, Domestic
SPECIFICATIONS
Brand: Apollo™
Series: 76-100
Type: 2-Piece
Body Material: Stainless Steel
Domestic/Import: Domestic
End Style: FNPT
Nominal Size: 1/4 in
Pressure Rating: 150 psig
Port Type: Standard
Softgoods Material: Graphite/MPTFE/RPTFE
Trim Material: 316 Stainless Steel Stem and RPTFE Seat
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 2.05 in
Top to Inlet Center: 1.71 in
Weight: 0.58 lbs
ITEM FEATURES
- 24: RPTFE bearing
- A276-316 stainless steel gland nut/stem
- 18-8 stainless steel lever nut
- Graphite packing, PTFE seal, MPTFE stem packing and RPTFE stem bearing
- Investment cast components
- Reinforced seats
- Mounting pad for easy actuator mounting
- Blow-out proof stem
- Vacuum service to 29 in Hg
- 2000 psig CWP
- 304 stainless steel with vinyl grip handle
- ASTM A351-CF8M or A276-316 stainless steel retainer
