Mobile Climate Control
Air Filter | Part No. T23-1147 | MOBILE CLIMATE CONTROL
Quantity:
Pickup available at Ashcon International Inc.
Usually ready in 24 hours
Air Filter | Part No. T23-1147 | MOBILE CLIMATE CONTROL
Ashcon International Inc.
Pickup available, usually ready in 24 hours
3425 Laird Road
Unit #4
Mississauga ON L5L 5R8
Canada
Filter Characteristics
| MEDIA | 100% tribo-electric synthetic micro fibers |
| EFFICIENCY RATING | Merv 13 |
| PLEATS PER INCH | 1.3 - 1.5 |
| CLEANABLE/WASHABLE | No |
| FRAME | Double wall moisture resistant designed with diagonal/horizontal grid support members on both sides |
| MEDIA SUPPORT | Expanded metal on outlet side |
| INITIAL RESISTANCE W/ FACE VELOCITY 300 FPM | 0.23-0.28 WG" |
| FLAMMABILITY | Rated class 2 under ul 900 standard |
| MAX TEMPERATURE | 150°F (82°C) |
| MAX HUMIDITY | 100% relative humidity |
| THICKNESS OF FILTER | 1" nominal (actual 3/4" ±1/16") |

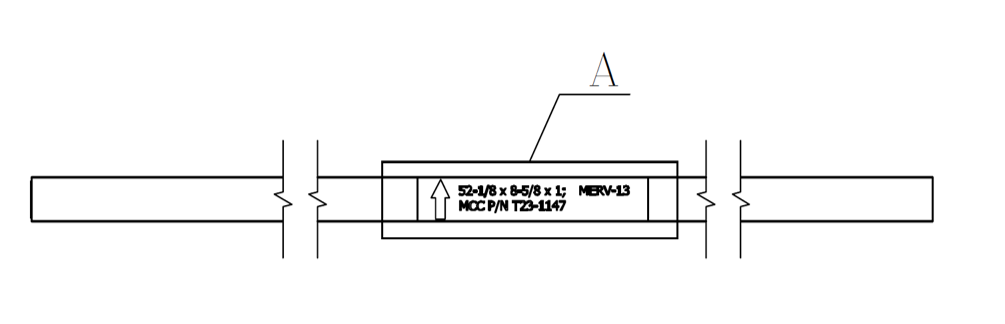

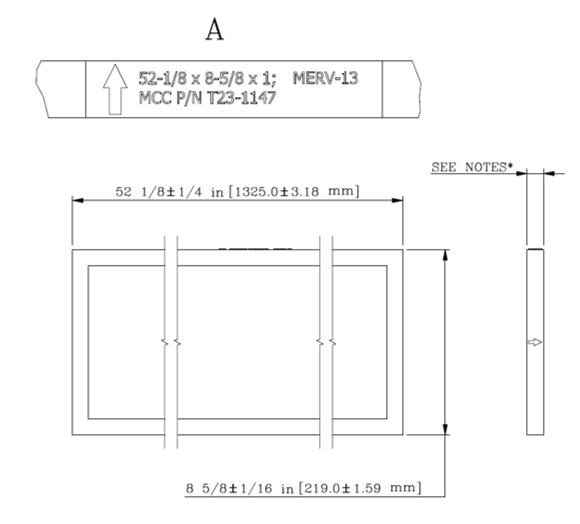

Dimensions and tolerancing per ASME Y14.5-2009 unless otherwise specified, length tolerances are:
±1/16" from 0.0" up to 12.0"
±1/8" from 12.0" up to 78.5"
±1/4" from 78.5" up to 236.0"
±3/8" from 236.0" and higher
Angle tolerance: ±2 unless otherwise specified
